Reliable, Versatile, Easy-to-use.
V-1504 Vertical Platform Lift
The Savaria V-1504 lift is built to carry a wheelchair and passenger safely up and down one or more levels.
Features
Suitable for installations in public and commercial buildings, as well as private homes, this Savaria lift features an extremely versatile design that can be configured and customized to suit virtually any project requirements and aesthetic needs. From the rugged outdoors, to the most luxurious office tower lobbies, the Savaria V-1504 lift is ready to serve with its reliable performance, ease of use and range of finish options.
Customize Your Lift
Can be built to suit virtually any home or commercial project from basic to the ultimate in luxury.
Quiet & Reliable
The hydraulic drive has a smooth start, stop and overall ride that works dependably.
Machine Roomless
Enclosed drive system means no machine room is required, making the installation process easier. Driven by our reliable hydraulic system the lift travels up and down a rail system enclosed in the lift tower so no machine room is needed.
Safe & Secure
Emergency stop button on car, underpan obstruction sensors, non-skid platform, manual lowering device, 42 1/8″ (1070 mm) side panels, keyed car buttons and keyed call stations, safety brake, door locks, platform gate.
Standard Features
Large ADA-compliant platform, continuous pressure button operation, modular rail construction for easy construction, handrail, automatic battery recharging system. Standard finish of beige powder-coat paint.
Customizing Your Solution
Options
There are several models and configurations available for the Savaria V-1504.
The Standard Model has the essentials. The following options are available for customization:
Optional Configurations
Type 1, 2, 3 and 4.
Platform Sizes
W36” x L48” (914 mm x 1219 mm), Type 1, 2, 3, 4
W36” x L54” (914 mm x 1371 mm), Type 1, 2, 3, 4
W36” x L60” (914 mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42″ x 60″ (1067 mm x 1524 mm)
Optional Finishes
Powder-coat finishes in light grey, dark grey, black, architectural white, dark brown, fence green, white or custom color (see color chart). See more about finish options according to the models listed above.
Other Options
Up to 4 stops, commercial package including alarm, auto fold-up ramp, keyless operation, keyed or keyless hall call (subject to type of application), low profile aluminum doors, steel ULC fire rated doors, wooden door on frame, power gate and door operators, tempered glass inserts for doors, acrylic inserts for gate, GAL or Savaria WR-500 weather resistant lock, folding seat, 60 mm buttons, ADA hands-free phone. The unit can be ordered with a 12-volt DC power supply for residential applications.

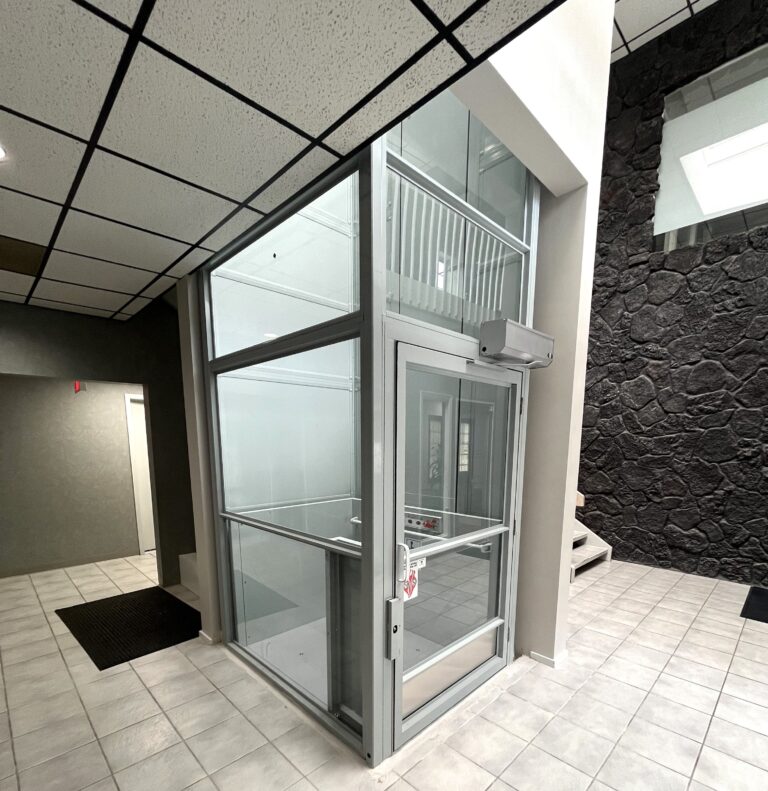

This enclosed model uses aluminum and acrylic inserts and top dome with corrosion-resistant steel components, making it ideal for outdoor applications. Optionally, this model can be ordered with tempered or laminated glass panels. The active ventilation system keeps the inside comfortable and the gates and door can be motorized.
Optional Configurations
Type 1, 2, 3 and 4.
Platform Sizes
W36” x L48” (914 mm x 1219 mm), Type 1, 2, 3, 4
W36” x L54” (914 mm x 1371 mm), Type 1, 2, 3, 4
W36” x L60” (914 mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42″ x 60″ (1067 mm x 1524 mm)
Optional Finishes
Powder-coat finishes in light grey, dark grey, black, architectural white, dark brown, fence green, white or custom color (see color chart). See more about finish options according to the models listed above.
Other Options
Up to 4 stops, commercial package including alarm, auto fold-up ramp, keyless operation, keyed or keyless hall call (subject to type of application), low profile aluminum doors, steel ULC fire rated doors, wooden door on frame, power gate and door operators, tempered glass inserts for doors, acrylic inserts for gate, GAL or Savaria WR-500 weather resistant lock, folding seat, 60 mm buttons, ADA hands-free phone. The unit can be ordered with a 12-volt DC power supply for residential applications.
Framed in brushed stainless steel with tempered or laminated glass inserts, this lift is a beautiful complement for lobby areas, offices and public buildings.
Optional Configurations
Type 1, 2, 3 and 4.
Platform Sizes
W36” x L48” (914 mm x 1219 mm), Type 1, 2, 3, 4
W36” x L54” (914 mm x 1371 mm), Type 1, 2, 3, 4
W36” x L60” (914 mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42″ x 60″ (1067 mm x 1524 mm)
Optional Finishes
Powder-coat finishes in light grey, dark grey, black, architectural white, dark brown, fence green, white or custom color (see color chart). See more about finish options according to the models listed above.
Other Options
Up to 4 stops, commercial package including alarm, auto fold-up ramp, keyless operation, keyed or keyless hall call (subject to type of application), low profile aluminum doors, steel ULC fire rated doors, wooden door on frame, power gate and door operators, tempered glass inserts for doors, acrylic inserts for gate, GAL or Savaria WR-500 weather resistant lock, folding seat, 60 mm buttons, ADA hands-free phone. The unit can be ordered with a 12-volt DC power supply for residential applications.
With half-inch structural tempered glass and no visible frame, this lift is the ultimate statement for creating barrier-free access in commercial applications.
Optional Configurations
Type 1, 2, 3 and 4.
Platform Sizes
W36” x L48” (914 mm x 1219 mm), Type 1, 2, 3, 4
W36” x L54” (914 mm x 1371 mm), Type 1, 2, 3, 4
W36” x L60” (914 mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42″ x 60″ (1067 mm x 1524 mm)
Optional Finishes
Powder-coat finishes in light grey, dark grey, black, architectural white, dark brown, fence green, white or custom color (see color chart). See more about finish options according to the models listed above.
Other Options
Up to 4 stops, commercial package including alarm, auto fold-up ramp, keyless operation, keyed or keyless hall call (subject to type of application), low profile aluminum doors, steel ULC fire rated doors, wooden door on frame, power gate and door operators, tempered glass inserts for doors, acrylic inserts for gate, GAL or Savaria WR-500 weather resistant lock, folding seat, 60 mm buttons, ADA hands-free phone. The unit can be ordered with a 12-volt DC power supply for residential applications.
Technical Information
Applications: Residential, commercial, indoors, outdoors
Standard Capacity: 750 lb (340 kg)
Maximum Travel Distance: 23′ (7 m), subject to local code, in some areas the maximum is 12′ (3.65 m)
Nominal Speed: 20 ft/min (0.1 m/s)
Drive/Motor: 2:1 chain hydraulic, 3 hp, gear-type motor
Minimum Pit: 3″ (76.2 mm)
Power Supply: 110 volts, 20 amp, single phase, 60 Hz
