Affordable, Reliable, Easy-to-use.
Delta Inclined Platform Lift

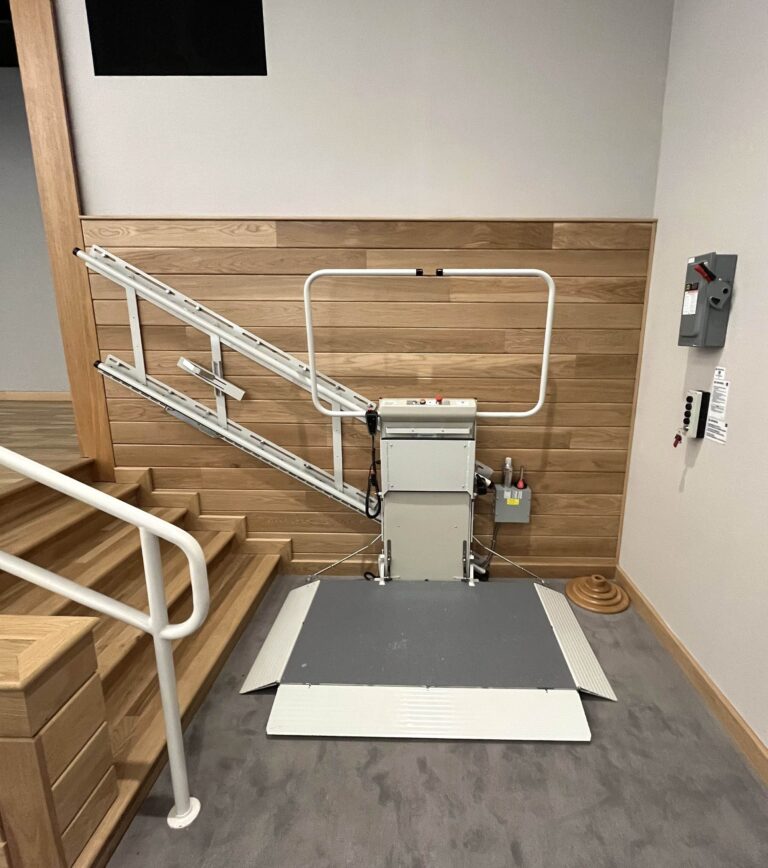

The Delta inclined platform lift carries a passenger with wheelchair up and down a single flight of straight stairs by travelling along a rail system mounted alongside the stairs.
Features
Suitable for home or commercial applications, this lift is well suited to environments where an elevator or vertical lift cannot be easily accommodated.
Affordable & Space-Efficient
Affordable alternative to an elevator or vertical lift. Provides access without significant renovations. Sleekly finished traveling rails and foldaway design.
ADA-Compliant
The folding platform, available in ADA-compliant size, allows easy access to stairs when the lift is not being used, making this a popular choice for schools, churches and other public buildings. Optional ADA-compliant platform, ideal for public accessibility requirements.
Battery Powered
Battery ensures the lift operates through a power failure. Charging stations at the top and bottom ensure the lift is always ready to go.
Safe & Secure
Obstruction sensor system on the platform, non-skid platform with side safety flaps, overspeed governor, manual lowering device, keyed access for call stations and emergency stop button.
Standard Features
Constant pressure buttons to move the lift up and down, motor housed on board the lift, modular rail system, manual folding platform, pendant control, keyed call stations, keyed operation. Standard finish of lightest gray.
Machine Roomless
The drive system is housed with the lift, so no additional machine room is needed.
Customizing Your Solution
Options
Optional Configurations
Straight through or side exit (90 degrees) ramp.
Platform Sizes
W26.5″ x L36″ (673 mm x 914 mm)
W27″ x L36″ (686 mm x 914 mm)
W30.5″ x L49.25″ (775 mm x 1250 mm)
W28.35″ x L35.43″ (720 mm x 900 mm)
W28.5″ x L44″ (724 mm x 1118 mm)
Other Options
Motorized folding/unfolding of platform and safety arms, fold-down seat with 330 lb (150 kg) capacity, pedestrian warning light and movement alarm, and stainless steel rail (required for outdoor applications).
Commercial Package
Includes power folding arms and platform, additional battery pack, audio visual alert, folding seat, ADA-compliant platform.
Technical Information
Applications: Commercial*, residential
Stair types: Straight, single flight with constant gradient
Capacity: 550 lb (250 kg)
Optional capacity: 660 lb (300 kg) USA only
Nominal speed: 15 feet/minute (0.075 metres/second) to 20 feet/minute (0.1 metres/second)**
Minimum travel: 8″ (20 cm)
Maximum travel: 80′ (24 m)
Motor: 0.66 hp (0.5 kW)
Gradient: Constant, 20˚ to 45˚
Power supply: 24 volts DC (battery system), 120V AC for charger
* For outdoor applications, consult your local Savaria dealer as not all climates may be suitable for outdoor installations.
** Note that the speed may vary depending on the angle of the stairs
