Vuelift Home Elevator

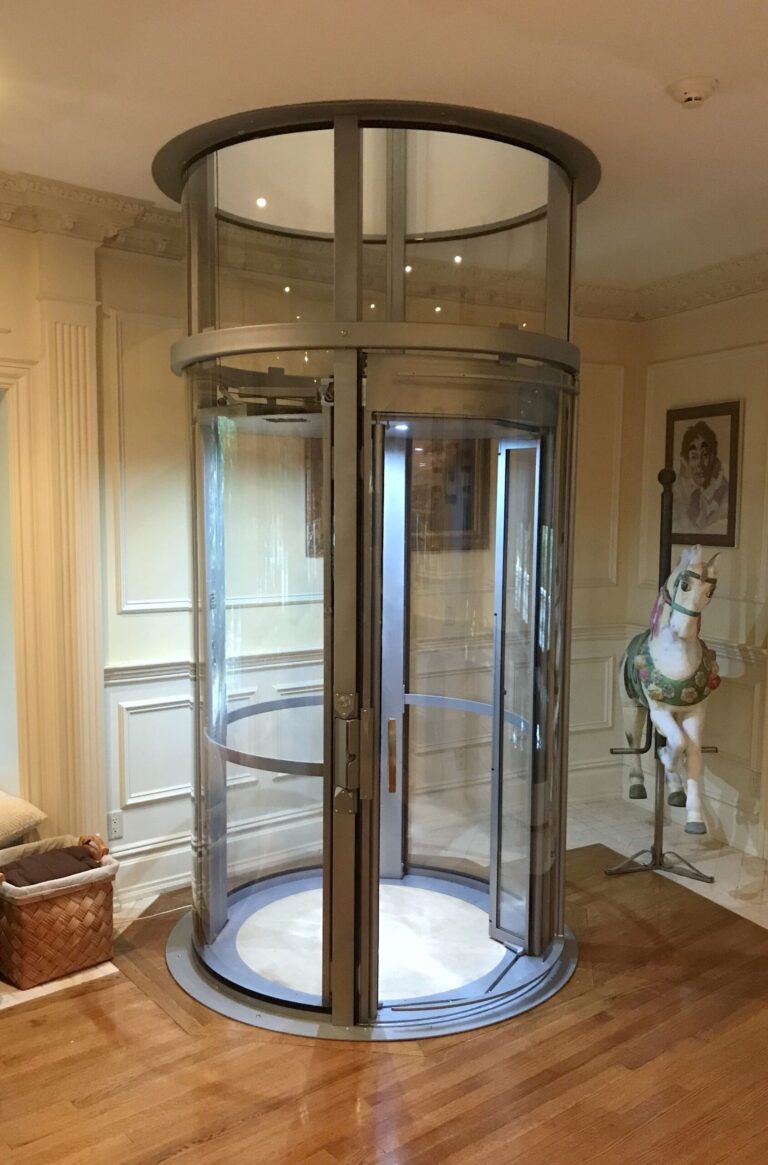

Vuelift Round

vueliftmain

Change your perception of what a home elevator can be! A stand-alone solution that does not require a hoistway to be constructed, Vuelift elegantly ascends within the home’s existing architecture. While ideal for renovations, it can also be the centerpiece of a new home design; many architects place the cylindrical elevator within a spiral staircase, or mirror its elegant curves in other design elements.

Enjoy unobstructed panoramic views from your Vuelift; an investment in beauty and convenience for today, it also ensures mobility and independence for the future.

Your Vuelift Round elevator can be configured for up to 6 stops with a maximum travel of 42.5 ft, in clear acrylic with a 840 lb capacity. Metal components are finished with lustrous powder-coat in virtually any color you can imagine to blend with your home’s décor, or provide dramatic contrast. Driven by a reliable, energy-efficient winding drum motor, your Vuelift will provide dependability and peace of mind for years to come.

Choose the Savaria Vuelift Round for a home elevator that transcends convenience to deliver a ride that is an experience in itself.

Features

Winding drum drive train system: Reliable and energy-efficient.

Modular hoistway design: Easy to install in existing and new build homes, eliminating need for complex and costly construction.

Clear wall cab and hoistway: Fully enclosed cab and hoistway in clear acrylic.

Pitless option: Standard pit is 4″; pitless option available with ramp or short step on lower level.

Standard finish: Black semigloss textured powder-coat.

Other standard features: Automatic cab on/off interior LED lighting, integrated touch-pad phone.

Safety features: Battery operated emergency lowering and lighting, manual emergency lowering, emergency stop switch, over-speed governor, safety brakes.

Warranty: 36 months parts.

Options

Optional Configurations: Type 2, 3.

Optional Short Cab: 76.5″ (1.94 m) interior height, 96″ (2.44 m) overhead.

Optional Colors: White, silver, or custom powder-coat frame color.

Other Options: Up to 6 stops, panoramic car ceiling, balcony attachment.

Technical Information

Applications: Residential, indoors

Standard Configuration: Type 1

Standard Capacity: 840 lb (381 kg)

Cab floor area: 13.09 sq ft (1.22 sq m)

Interior cab height: 84″ (2.13 m)

Hoistway diameter: 54″ (1.37 m)

Hoistway material: Clear acrylic

Maximum Travel Distance: 42.5′ (12.95 m)

Nominal Speed: 32 ft/min (0.16 m/s)

Drive/Motor: Winding drum, 1.5 hp

Minimum Pit: 4″-12″ (102-305 mm)

Minimum Overhead Clearance: 106″ (2.69 m)

Power Supply: 30A, 230-V, single phase, 50/60 Hz

Documents

Vuelift Residential Elevator Drawings

Vuelift Octagonal

vueliftoct

A masterpiece of art and engineering, the Vuelift Octagonal elevator offers function and beauty for those with the most discerning taste. The unique octagonal prism shaped cab and hoistway sparkles like a faceted crystal as the centerpiece of your home. With a minimal footprint, Vuelift Octagonal fits into existing stairwells or spaces where a standard elevator may not be possible.

Enjoy sweeping views of your home from the elevator car, which is made from clear acrylic (840 lb capacity) or silica glass (950 lb). Metal components are finished with lustrous powdercoat in virtually any color you can imagine, to blend with your home’s décor or provide dramatic contrast.

Your Vuelift elevator can be configured for up to 6 stops with a maximum travel distance of 42.5 ft. Driven by a reliable, energy-efficient winding drum motor, your Vuelift will provide dependability and peace of mind for years to come.

Choose the Savaria Vuelift Octagonal home elevator for state-of-the-art design and uncompromised performance.

Features

Winding drum drive train system: Reliable and energy-efficient.

Modular hoistway design: Easy to install in existing and new build homes, eliminating need for complex and costly construction.

Clear wall cab and hoistway: Fully enclosed cab and hoistway in clear acrylic.

Pitless option: Standard pit is 4″; pitless option available with ramp or short step on lower level.

Standard finish: Black semigloss textured powder-coat.

Other standard features: Automatic cab on/off interior LED lighting, integrated touch-pad phone.

Safety features: Battery operated emergency lowering and lighting, manual emergency lowering, emergency stop switch, over-speed governor, safety brakes.

Warranty: 36 months parts.

Options

Optional Configurations: Type 2, 3.

Optional Short Cab: 76.5″ (1.94 m) interior height, 96″ (2.44 m) overhead.

Optional Cab Wall and Hoistway: Low-iron silica glass

Optional Colors: White, silver, or custom powder-coat frame color.

Other Options: Up to 6 stops, panoramic car ceiling, balcony attachment.

Technical Information

Applications: Residential, indoors

Standard Configuration: Type 1

Standard Capacity: Acrylic model – 840 lb (381 kg), low-iron silica glass model – 950 lb (431 kg)

Cab floor area: 12.83 sq ft (1.19 sq m)

Interior cab height: 84″ (2.13 m)

Hoistway W x L: W48″ x L48″ (1.2 m x 1.2 m)

Maximum Travel Distance: 42.5′ (12.95 m)

Nominal Speed: 32 fpm (0.16 m/s), 40 fpm (0.2 m/s) for low-iron silica glass model

Drive/Motor: Winding drum, 1.5 hp

Minimum Pit: 4″-12″ (102-305 mm)

Minimum Overhead Clearance: 106″ (2.69 m)

Power Supply: 30A, 230-V, single phase, 50/60 Hz

Documents

Vuelift Residential Elevator Drawings
