Multilift Vertical Platform Lift

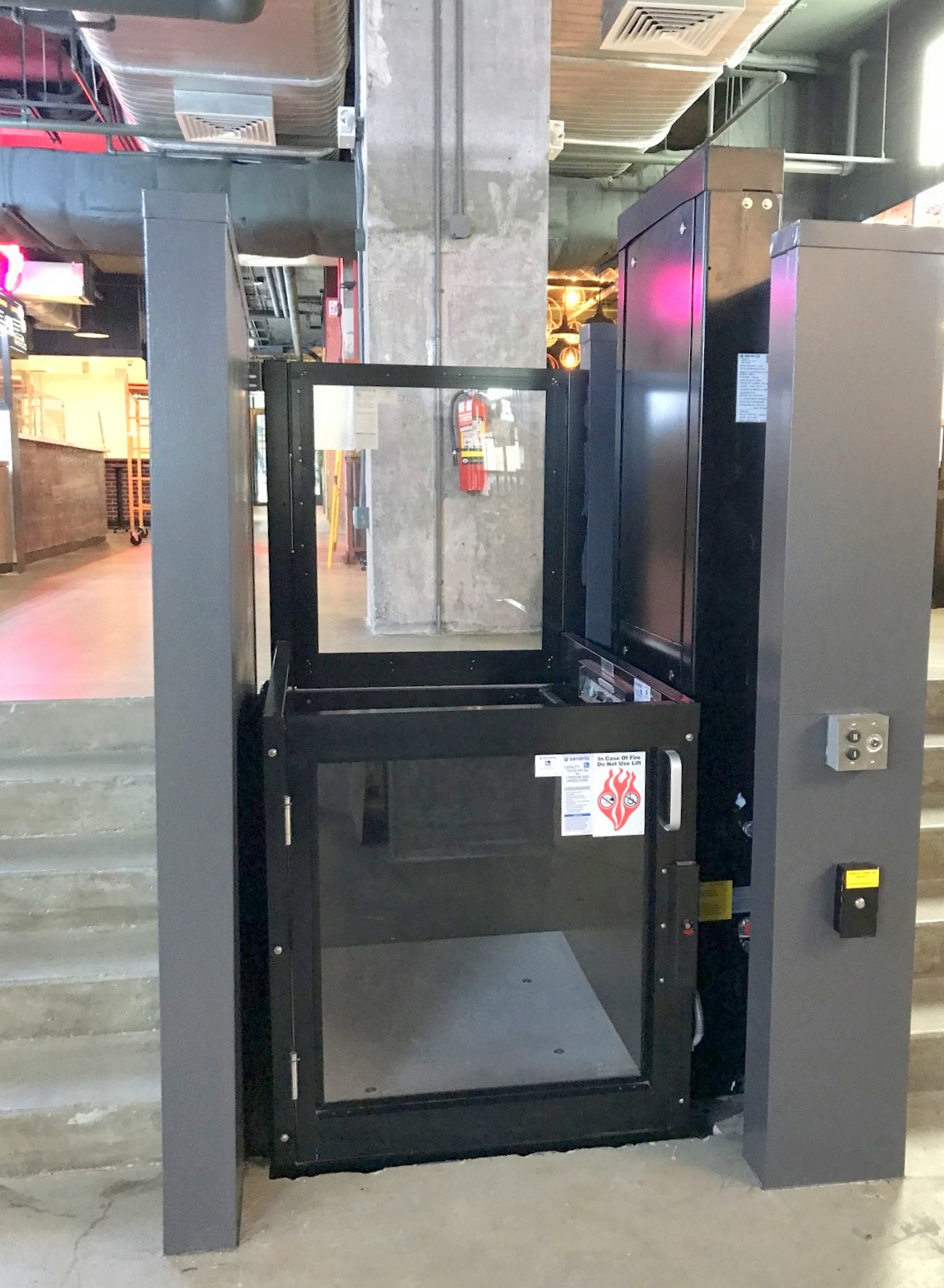

The Multilift is a vertical platform lift, designed for low-rise travel indoors or out. With its durable design, the Multilift is popular for accessing decks and porches even in demanding climates.
Features
At the heart of the Multilift is the reliable operation of the ACME screw drive which delivers precision movement and performance you can count on day after day.
Customize Your Lift
We offer a large variety of attractive cab finishes, colors, and options to customize your design for a more personalized look.
Reliable Operation
From the ACME screw drive with its precision movement and strength for day-to-day use. Handling up to 750 lb this lift can carry a passenger in a wheelchair with ease.
Rugged Construction
Ideal for outdoor or indoor use and withstands weather extremes. The self-enclosed drive tower makes the unit fast and easy to install.
Safe & Secure
An array of safety features ensures safe operation including sensors to stop the lift if it senses an obstruction. Emergency stop button on car, underpan obstruction sensors, non-skid platform, manual lowering crank, 42 1/8″ (1070 mm) side panels, keyed cab buttons and keyed call stations, automatic access ramps, slack cable switch.
Standard Features
Continuous pressure operation, keyed access on car, non-skid zinc-coated platform in three standard sizes, automatic access ramp. Standard finish of beige powder-coat paint.
Customizing Your Solution
Options
There are several models of the Multilift available including a mobile version, an enclosed unit and one clad in stainless steel. This lift is available for commercial applications in the U.S. and home use anywhere. The Multilift is an easy way to add access for low-rise travel.
The Standard Model has the essentials. The following options are available for customization:
Optional Configurations
Type 2, 3 and 4.
Unenclosed Platform Sizes
W34” x L48” (864 mm x 1219 mm), Type 2, 3, 4
W34” x L54” (863 mm x 1371 mm), Type 2, 3, 4
W34” x L60” (863 mm x 1524 mm), Type 2, 3, 4
Access Ramp: 16”/406 mm, 24”/610 mm (Quebec, or optional)
36″ wide platform optional
Other Options
Low profile aluminum doors, steel ULC fire rated doors, wooden door on frame, power gate and door operators, tempered glass inserts for doors, acrylic inserts for gate, audible alarm and light on car, grab rail, fixed access ramp, GAL or Savaria WR-500 weather resistant lock. This unit can also be configured to travel up to 72″ (182.88 cm). The unit can be ordered as a 12-volt DC power supply for residential applications.

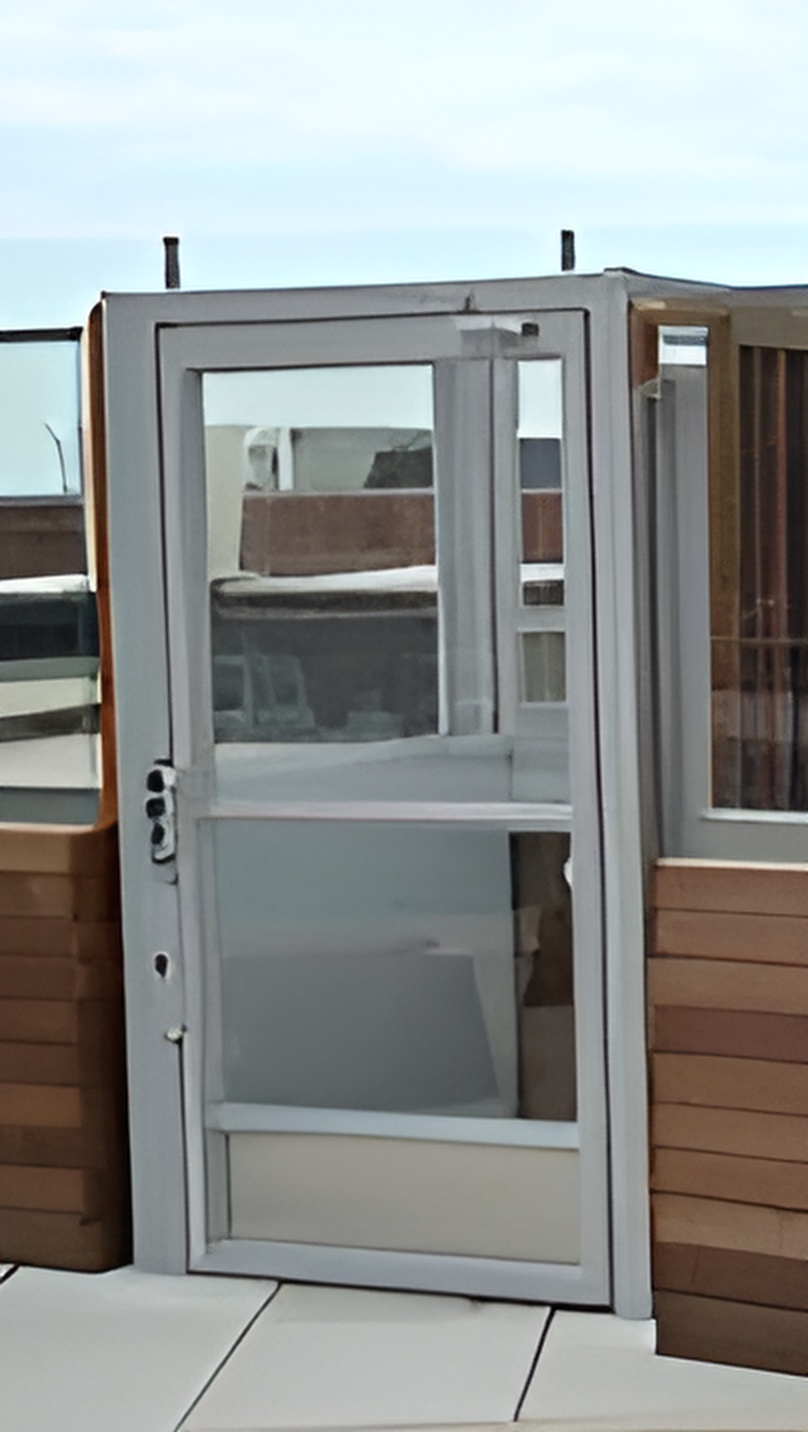

The enclosed model is built and shipped complete with an aluminum-framed enclosure. Installation is simple and requires anchorage to a concrete base. Suitable for indoor or outdoor installations with weather-resistant lock and covered buttons. The unit can be ordered to meet ADA requirements, please consult Savaria or your authorized Savaria dealer for complete details.
Optional Configurations
Type 2, 3 and 4 (consult Savaria on ADA compliance).
Platform Sizes
W36″ x L48″ (914 mm x 1219 mm) Type 2, 3, 4
W36″ x L54″ (914 mm x 1372 mm) Type 2, 3, 4
W36″ x L60″ (914 mm x 1524 mm) Type 2, 3, 4
Other Options
Aluminum, acrylic or clear tempered glass inserts for enclosure as well as upper and lower landing gates. Low profile aluminum doors, manual swing door (ULC fire rated), custom pro door, telephone or ADA handsfree phone, joystick, 60 mm buttons, wired hand pendant, commercial package (audible alarm, grab rail). Keyless operation if desired. A 12-volt battery operated version of this unit is available for residential use only.
The Multilift is available clad in stainless steel. This unit travels up to 48″ and includes stainless steel clad side guards, call/send stations, landing and platform gates. An automatic access ramp is also included. Optional stainless steel clad unit available.
Platform Size
W36″ X L54″ (914 mm x 1372 mm) Type 2
Other Options
Fixed access ramp.
The mobile unit can be moved to provide access where needed.
Platform Size
W36″ x L48″ (914 mm x 1219 mm) Type 2. Includes 2 platform gates and automatic access ramp.
If you need an accessibility lift for a stage, courtroom or other public area and you don’t want the obstruction created by a full enclosure, the 3G model can be the perfect solution. The fixed side walls and landing gate create a partial enclosure for safety when the lift is being used – no one can get under the lift while in use. Yet the lift does not create an obstruction for viewing the surrounding area.
Platform Size
W36″ x L54″ (914 mm x 1372 mm) Type 2. Includes platform gate, lower and upper landing gates.
Technical Information
Applications: Commercial in the USA, residential, indoors, outdoors
Standard Capacity: 750 lb (340 kg)
Maximum Travel Distance: 48″ (121.92 cm), optionally up to 72″ (182.88 cm) Please note that the mobile, 3G and stainless unit are limited to 48″ of travel.
Nominal Speed: 8 ft/min (0.04 m/s)
Drive/Motor: ACME screw drive and back-up nut, 1 hp, electronic-free controller
Power Supply: 120 VAC, 15 A, 60 Hz, single phase (must be a dedicated electrical line).
