Pegasus Inclined Platform Lift

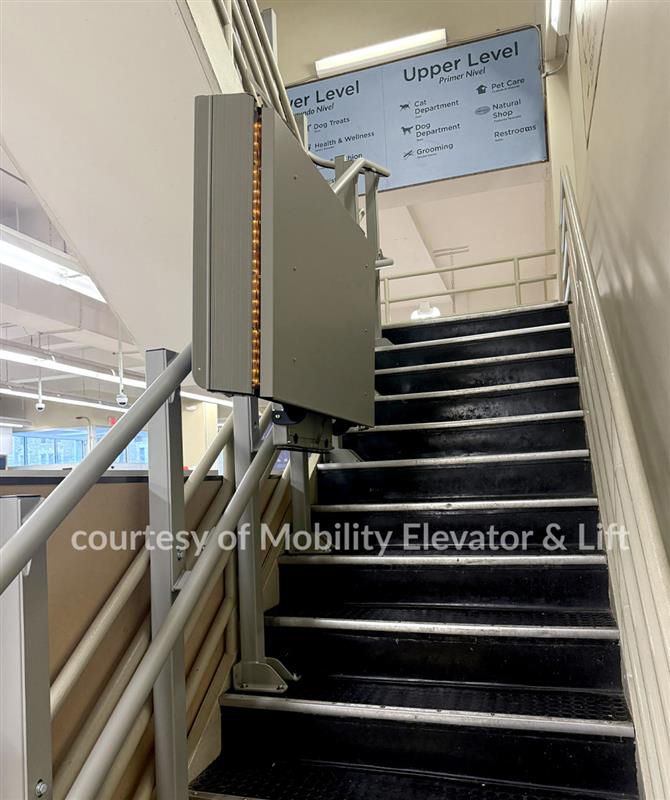

The Pegasus inclined platform lift is custom-built to provide access over stairs with multiple levels, curves, or intermediate landings. This lift carries a passenger in a wheelchair, up to 660 lbs, by travelling along a rail system mounted alongside the stairs.
Features
An alternative to an elevator or vertical platform lift, the Pegasus IPL requires minimal construction. For residential and commercial use (where code permits); indoor and outdoor applications (moderate climates only). The Savaria Pegasus lift replaces the Omega inclined platform lift.
Flexible Installation
It is custom built to your specifications to fit staircases with inside and outside curves, spiral stairs or multiple levels. There is minimal construction required. It provides access without significant renovations.
Space-Saving Design
The Pegasus IPL has a sleek design with a foldaway and optional out-of-the-way parking that harmonizes with any building design.
Standard Features

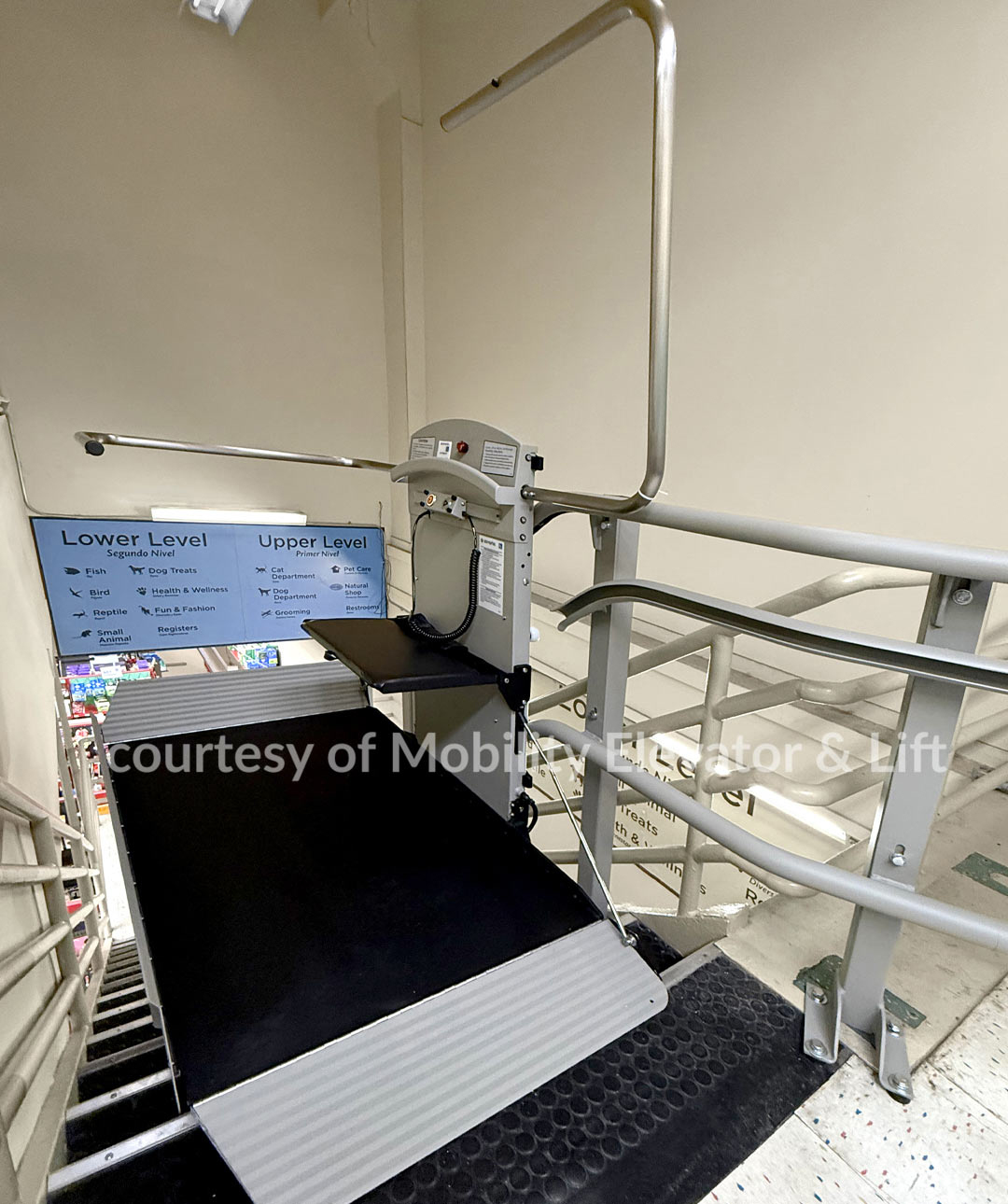

Constant pressure buttons to move the lift up and down, pedestrian warning light and movement alarm, straight through platform, power folding platform and safety arms, motorized ramps and pendant control. Standard finish options: White (RAL 9003). Stainless steel rails for outdoor units (required upgrade).
Safety Features
Sensor system on the platform, non-skid platform with side safety flaps, overspeed governor, manual lowering device, power folding safety arms, keyed access for call stations and emergency stop button.
Machine Roomless

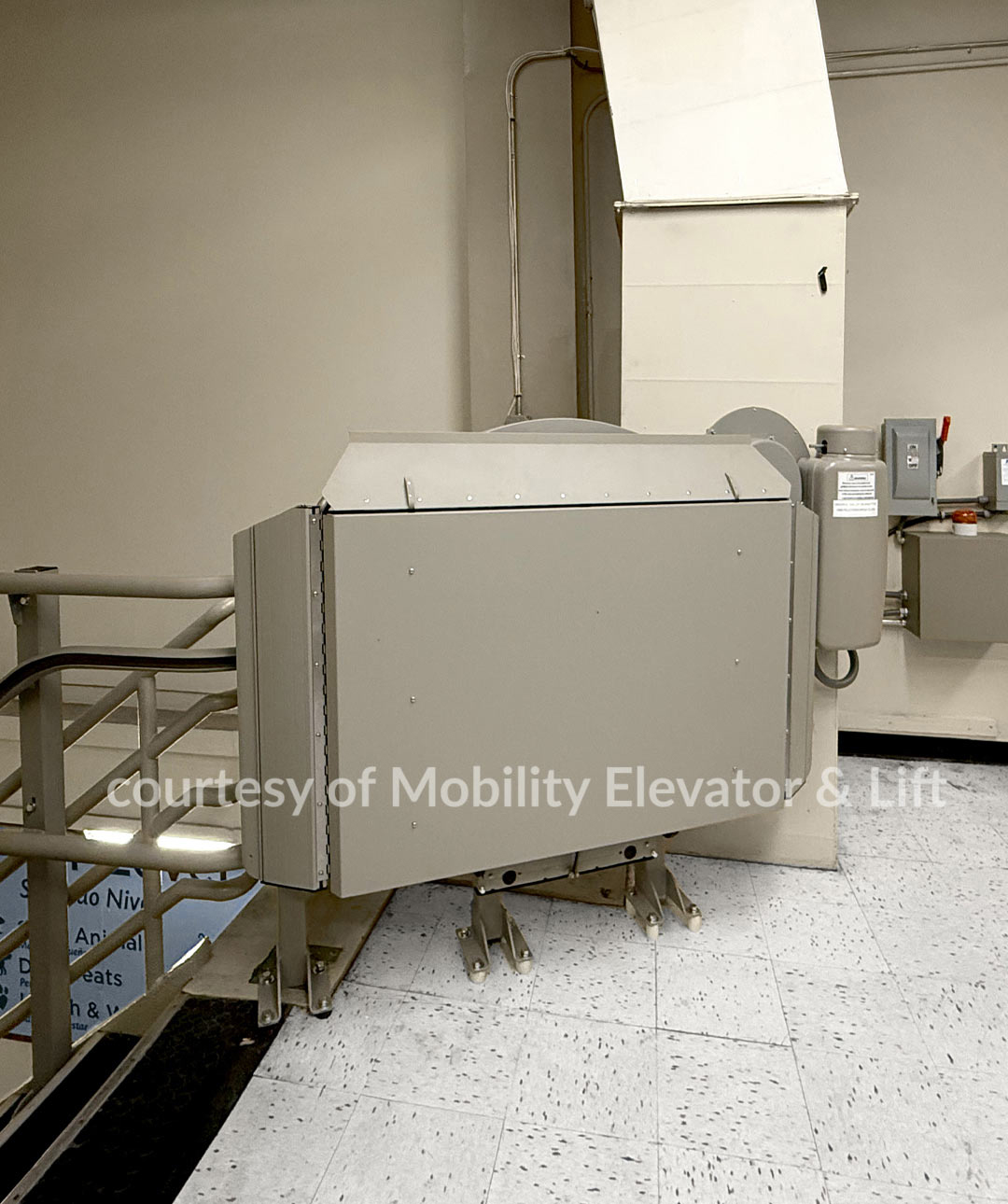

Motor is unobtrusively installed at the top landing, with the controller located remotely, no machine room required.
ADA-Compliant
Power foldaway platform is available in 2 sizes including ADA-compliant size and custom sizing.
Customizing Your Solution
Options
Flexible for many types of installations, including inside and outside curves, spiral stairs and multiple levels, the Savaria Omega is custom built to your specifications.
Optional Configurations
Vertical bend, steep start, 90 degree turn (inside curve, outside curve), 180 degree turn (inside curve) and special bends.
Standard Platform Size
W31.5" x L41.3" (800 x 1050 mm), W31.9" x L48" (810 x 1220 mm)
Other Options
Custom platform sizes, folding passenger seat with 330 lb capacity, stabilizer for any travel under 20 degrees, compact drive, free-standing pedestal call station
Technical Information
Applications: Commercial, residential, indoor, outdoor*
Stair Types: Multiple levels of straight stairs, stairs with intermediate landings, stairs with turns
Capacity: 660 lb (300 kg)
Standard platform size: W31.5" x L41.3" (800 x 1050 mm), W31.9" x L48" (810 x 1220 mm)
Speed: 20-30 ft/min (0.10-0.15 m/s), 10ft/min (0.05 m/s) through curves
Maximum travel: 164' (50 m)
Motor: 2 hp rope drive, with optional compact drive
Gradient: Changing, with or without landings and turns, up to 55˚ (residential) or up to 45˚ (commercial)
Power supply: 208-240 VAC single-phase, 50/60 Hz, dedicated 20 Amp circuit
Warranty: 24 months parts
* For outdoor applications, consult your local Savaria dealer as not all climates may be suitable for outdoor installations
