Through-Floor Lift
Luma Lift

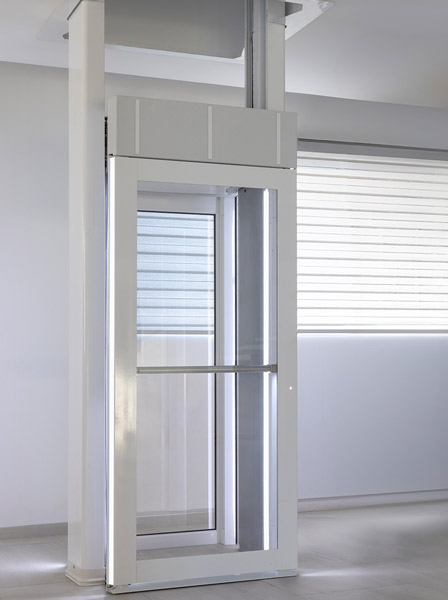

Looking for a way to skip the stairs, but don’t want a stairlift? The Savaria Luma lift is a beautifully designed two-stop lift that travels through a simple floor cut-out so no shaftway is needed.
Features
The self-supporting rail system makes the Luma lift incredibly flexible for placement – you don’t need a support wall. Its space-saving design only requires a 38″ by 47″ footprint.
Self-supporting rails
Self-supporting rails with hidden drive rope system and no unsightly cables. The lift travels smoothly on the rail system, allowing it to be placed anywhere in the room.
Ceiling trim and car top cap
Installation requires a simple floor cut-out, that is trimmed with our included kit. The top landing is capped off as the lift descends.
Non-skid floor & sloped entrance
Aesthetically pleasing non-skid material is used on the cabin floor. There is no need for a ramp or pit with the built-in sloped entrance eliminating tripping hazards.
Ventilation fan
For in-cabin air flow and comfort.
LCD status display
Advises the status of the lift, including any issues.
Optional two-door model
Add a second door for straight-through access. A great option to accommodate your floorplan needs, or for easier access with a walker or rollator.

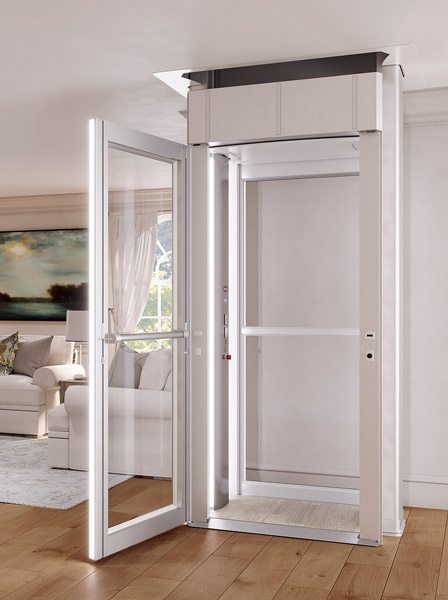

Full-sized door with handrail
With full acrylic panels, door interlock, and a sturdy handrail, the door maintains your safety at all times.

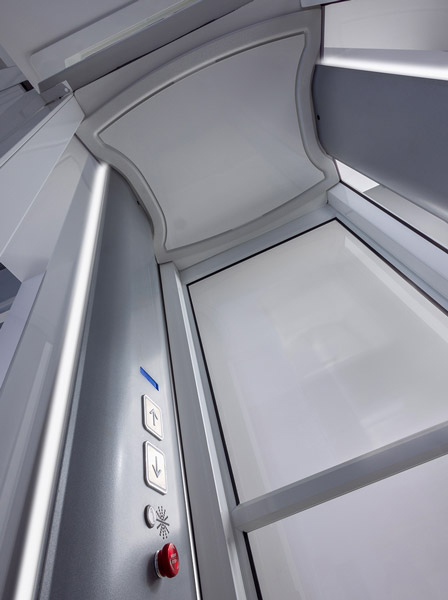

Easy operation
The illuminated push-to-run buttons are easy to use. The frame includes a built-in call button.
Full-sized clear panelled cabin
Luxurious, crystal clear panels give the cabin a spacious feel.
Recessed lighting
An elegant system in the door and cab panels adds beauty and interior visibility for the cabin.
Remote controls
Two radio-frequency remote controls are included to allow you to call the lift remotely.
Safety Features
The Luma lift meets all safety codes and is manufactured to the highest standards of quality and reliability. The Luma has an array of safety features including:
Emergency stop and alarm buttons
In case of emergency, the Luma Lift has the necessary features to stop and alert personnel.
Overspeed arrestor system
Overspeed arrestor system, ensures the lift never travels to exceed the appropriate speed.
One Touch Alert
A simple push button on the operating panel of the lift places a call to a pre-programmed emergency contact list. This provides easy two-way communications. This feature requires an owner-supplied prepaid nano SIM card* installed by the local dealer.
*not compatible with 5G or eSIM cards.
Sensors to Stop
Sensors to stop the lift in either direction, if it encounters any obstruction.
Door Locks
Door interlock keeps the door locked when the lift is in use.
Savaria Link Wi-Fi Monitoring
Using your household Wi-Fi system, your Luma lift operation can be monitored by the installing dealer remotely. The dealer is notified of major faults allowing for faster troubleshooting if needed.
Technical Information
Applications: Residential, indoors
Standard capacity: 400 lb (180 kg)
Maximum travel distance: 165 ¼" (4200 mm), 2 stops
Nominal speed: 13 ft/min (0.07 m/s)
Cabin Size: 29"W x 27 ¾"L x 78 ¾"H (739 mm x 706 mm x 2000 mm)*
*For the 2-door cab, length of the cab is 25 ¾" (655mm). An optional short cab is available with height. of 75" (1905 mm).
Drive system: Winding drum, operated with
constant pressure buttons.
Floor cut-out: 46 ¾"W x 37 ¾"L (1186 mm x 956 mm)
Power supply: 110 - 240 VAC, 5A (max), 50/60 Hz, single phase.
Warranty: 3 years on parts.
