The Savaria Luma lift is a beautifully designed two-stop lift that travels through a simple floor cut-out so no shaftway is needed. The self-supporting rail system makes the Luma lift incredibly flexible for placement – you don’t need a support wall. Its space-saving design only requires a 38″ by 47″ footprint.
See the planning guide and drawings below.
Luma Lift Planning Guide
Luma Lift Technical Information
Drawings & Documents
Specifications
Standard capacity: 400 lb (180 kg)
Maximum travel distance: 165 ¼” (4200 mm), 2 stops
Nominal speed: 13 ft/min (0.07 m/s)
Cabin Size: 29″W x 27 ¾”L x 78 ¾”H (739 mm x 706 mm x 2000 mm)*

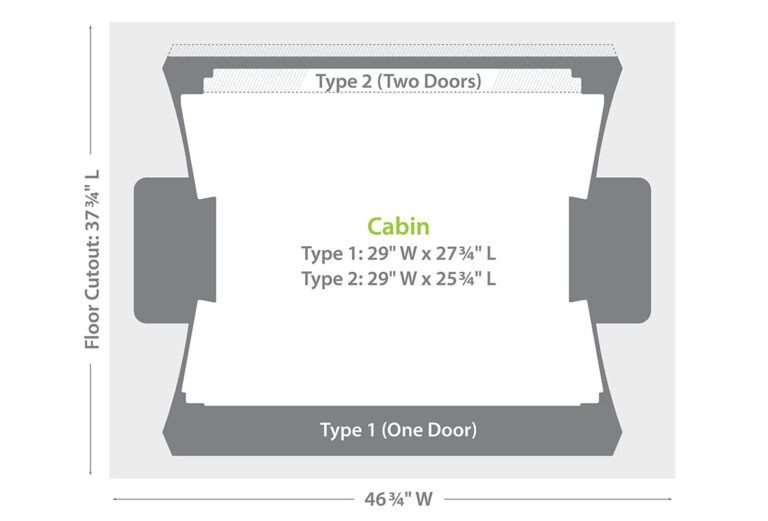

*For the 2-door cab, length of the cab is 25 ¾” (655mm). An optional short cab is available with height. of 75″ (1905 mm).
Drive system: Winding drum, operated with
constant pressure buttons.
Floor cut-out: 46 ¾”W x 37 ¾”L (1186 mm x 956 mm)
Power supply: 110 – 240 VAC, 5A (max), 50/60 Hz, single phase.
Warranty: 3 years on parts.
